Listen to, record, and share the sounds of your baby’s heartbeat as early as 16 weeks into pregnancy! The FD220 Home Fetal Doppler Monitor uses an external speaker that emits the quiet heartbeat sounds from your baby. Arrange the speaker’s placement to improve sound quality for others and share the experience of hearing your baby’s heartbeat!
1 Year Warranty & 30 Day 100% Money Back Guarantee if you're not fully satisfied.

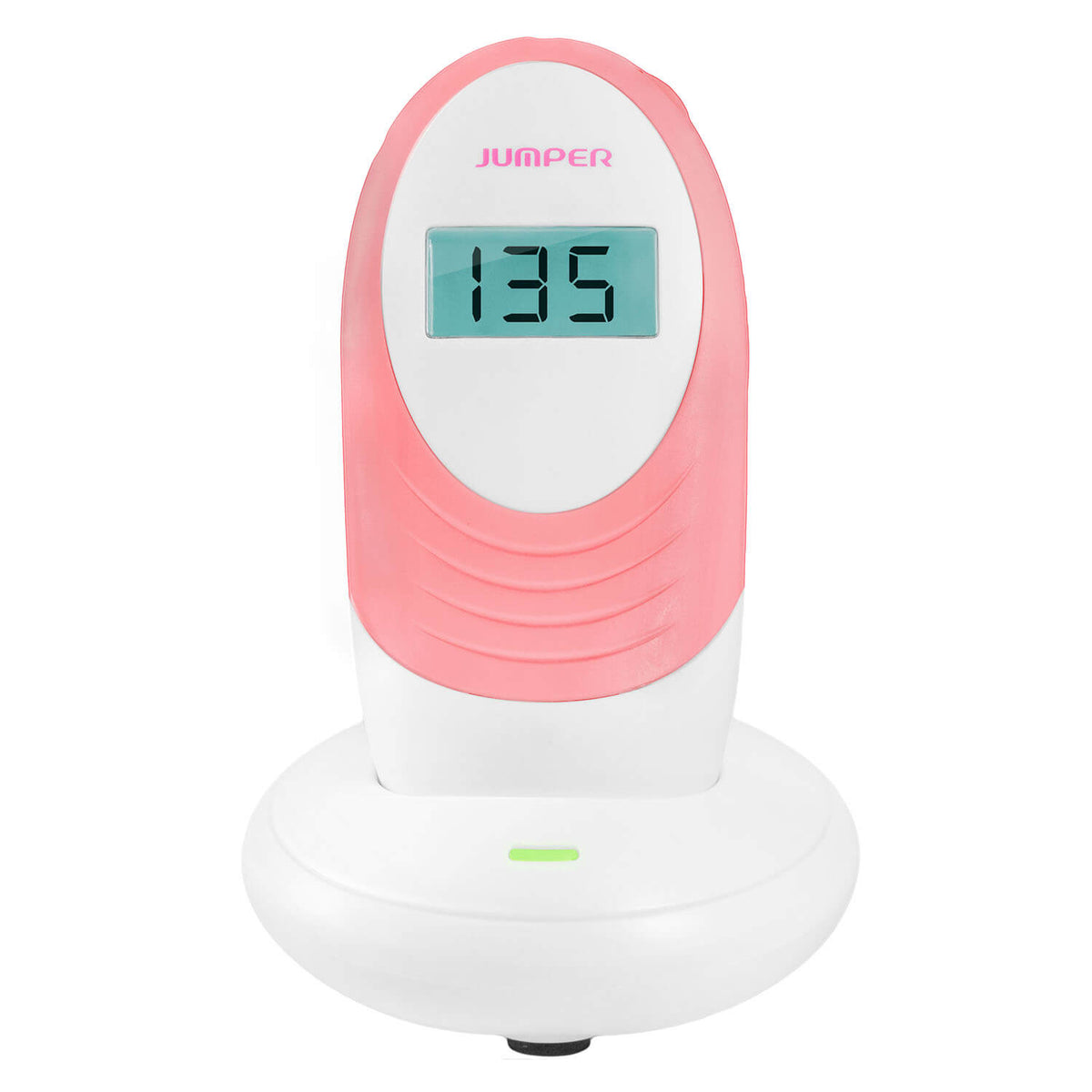

This fetal doppler model is our smallest unit available. The high-sensitivity heartbeat sensor on the FD220 detects a baby’s heartbeat in seconds and displays real-time FHR (Fetal Heart Rate) readings on the built-in LCD. After completing the use of the monitor, users can return the unit to the docking station for storage.
The FD220 outputs a high-quality audio signal through the unit’s dual headphone jacks. With the included recording cable, heartbeat sounds from the doppler can be recorded and stored on a computer. Share recordings with friends and family, or save them as a digital audio file!
- Test Range: 50 bpm ~ 210 bpm
- Resolution: 1 bpm
- Accuracy: ±2 bpm
- Portable size, lightweight (74g)
- Advanced heartbeat sensor detects full range of sound
- Real-time FHR readings
- Dual headphone jacks
- Battery powered
- Built-in probe
- Easy-lock battery cover
- Adjustable volume
This product is not a diagnostic instrument. It is not an approved device for the treatment or prevention of medical conditions. All activity that is monitored and viewed with the device should not be considered a medical conclusion. The use of the machine provides audio and heart rate value that is for non-medical purposes only. For questions regarding medical conditions, please consult with a medical health professional.
|LCD Size:||34mm x 16mm|
|Ultrasonic Emitting Frequency:||2.5MHz ±3%|
|Overall Sensitivity at Distances 200mm from the Face of the Probe:||≥90dB|
|Spatial-peak Temporal-peak Accoustic Pressure:||<8.6kPa|
|Ultrasound Output Power:||<20mW|
|Effective Area of the Ultrasonic Transducer Active Element:||1.57cm²|
|Acoustic Coupling Medium for Normal Use:||ph 5.5~8, Acoustic impedance ≤1.7 x 105g/cm²|
|FHR Test Range:||50 bpm ~ 210 bpm||FHR Resolution:||1 bpm|
|FHR Accuracy:||±2 bpm||Audio Output Power:||<0.5 W|
|Battery Type:||9V Alkaline|
|Main Body Dimensions:||122.5mm x 59mm x 37.4mm|
|Base Dimensions:||92mm x 98mm x 46mm|
|Main Body Weight:||74g|
