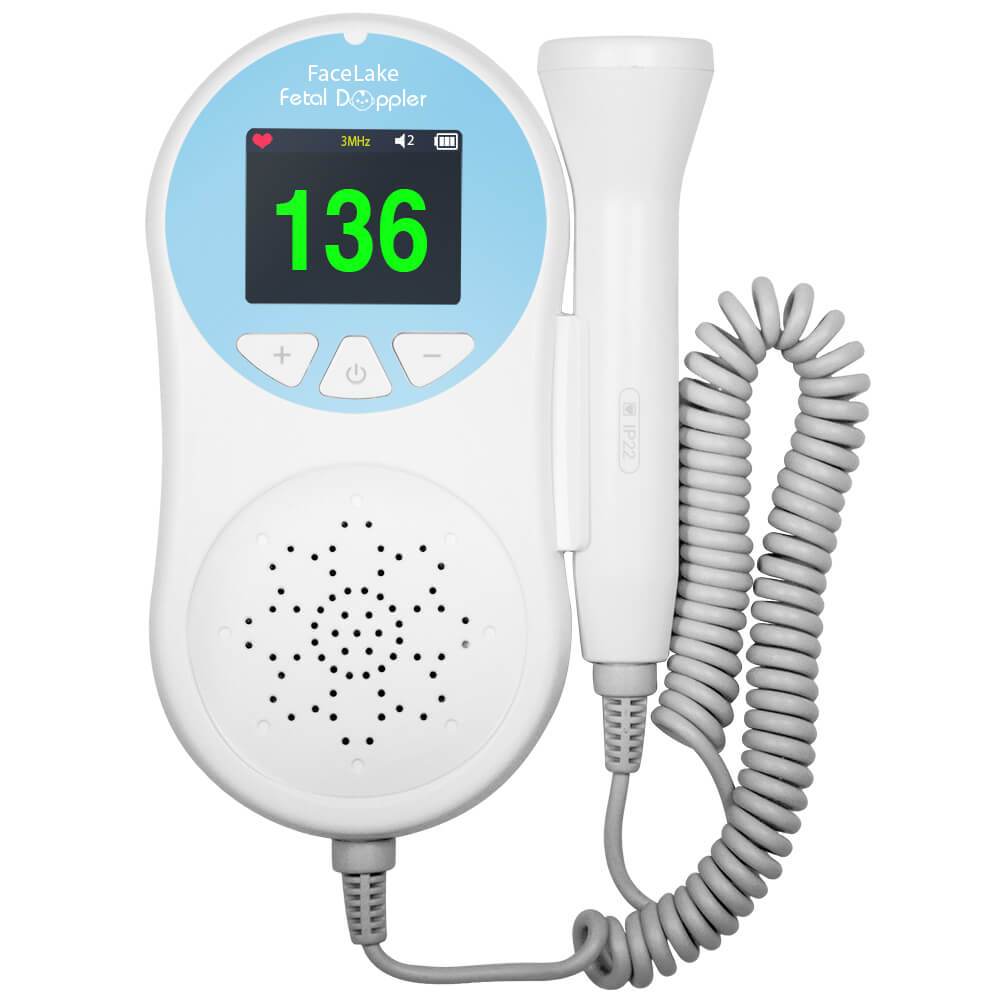

Listen to and record the heartbeat of your baby from as early as 12 weeks of pregnancy. While at home or on the go, the FD200 lets users hear the soft sounds of a prenatal heartbeat. The FD200 Fetal Doppler is our best-selling doppler used by thousands of mothers worldwide! Give yourself the peace of mind that your baby is safe and well at all times throughout your pregnancy.
Package Includes:
- Doppler Body
- 3Mhz probe
- 60 Gram ultrasound gel tube (supplies over 50 tests)
- 2 AA batteries
- 1-year warranty
1 Year Warranty & 30 Day 100% Money Back Guarantee if you're not fully satisfied.
User-friendly features such as auto shut-down, a battery status indicator, and a backlit display are built-in to this heart doppler. The FD200 uses standard AA batteries and does not require external cables or wires for power. The Fetal Beats per Minute (BPM) updates on screen while using the baby heart monitor.
This fetal doppler connects to a computer with the optional recording cable and provides a clear audio signal for a high-quality recording of a baby’s heartbeat. Heartbeat recordings stored on a computer can then be saved or shared with family and friends via email. Most desktop audio applications recognize the FD200 and are compatible with the doppler audio output signal for the recording functionality.
- Mode 1: a heart icon is displayed when the heartbeat is detected and the real-time heart rate is displayed numerically.
- Mode 2: a heart icon is displayed when the heartbeat is detected and it averages the heart rate for a more stable reading.
- Mode 3: this mode allows the user to calculate an average heart rate over a specific period of time by manually pushing a button to start & stop the time.
Features:
- FDA & CE Approved
- Listen through the powerful built-in speaker or with headphones
- Fetal Beats per Minute (BPM) display
- Easy to read LCD screen with on/off back light mode
- Auto-off feature & low battery consumption to ensure many hours of usage
- Battery icon indicating remaining battery life (AA batteries)
- Weighs less than 1/2 a pound
- Compact design with buttons designed to withstand repeated usage without wearing or breaking
Choosing Probes:
- 3 Mhz: The 3 MHz is an early term and general purpose Doppler probe. It will work very well through most full term pregnancies. A 3 Mhz is more sensitive than a 2 Mhz probe and can pick up baby's heartbeat as early as 8-10 weeks gestation.
- 2 Mhz: Designed to accommodate late term and obese pregnancies since it works best at 10 cm and larger depths.
Watch over 6,000 tutorials and reviews from our customers here
View Instructions
Digital sound recording. You will be able to record those first sounds for life, record your unborn baby's heartbeat. It not only can be recorded by the computer, but also stored in cassette or CD.
This product is not a diagnostic instrument. It is not an approved device for the treatment or prevention of medical conditions. All activity that is monitored and viewed with the device should not be considered a medical conclusion. The use of the machine provides audio and heart rate value that is for non-medical purposes only. For questions regarding medical conditions, please consult with a medical health professional.
Safety
Complies with: | IEC 60601-1:1988+A1:1991+A2:1995 |
Anti-electroshock Type: | Internally powered equipment |
Anti-electroshock Degree: | Type B applied part |
Main Unit: | Ordinary equipment (sealed equipment without liquid proof) |
Probe: | Prevent from water splashing, degree of protection: IPX4 |
Degree of Safety in Presence of Flammable Gases: | Equipment not suitable for use in presence of flammable gases. |
Working System: | Continuous running equipment |
EMC: | Group I Class B |
Suitable Using Range: | Suitable for use after the 12th week of pregnancy |
Physical Characteristics
Size: | 135mm (Length) *92mm (Width) *29 (Height) mm |
Weight: | About 245g (including batteries) |
Working Environment
Temperature: | +5℃ - +40℃ |
Humidity: | <=80% |
Atmospheric Pressure: | 70 kPa - l06kPa |
Transport and Storage Temperature: | -10℃ - +55℃ |
Transport and Storage Humidity: | <=93% |
Display: | 45mm * 25mm LCD Display |
FHR Measuring Range: | 50-240BPM (BPM: beat per minute) |
Resolution: | 1BPM |
Accuracy: | (+/-)2BPM |
Power Consumption: | <0.8W |
Auto Shut-OFF: | After 1 minute no signal, power off automatically. |
Battery Type Recommended: | Two pieces of 1.5 V DC battery (SIZE AA LR6) |
Probe
Nominal Frequency: | 2.0MHz or 3Mhz |
Working Frequency: | 2.0MHz(+/-)10% or 3Mhz |
P-: | <0.5MPa |
Iob: | <10 mW/cm2 |
Ispta: | <50mW/cm2 |
Ultrasonic Output Intensity: | Isata<5 mW/cm2 |
Ultrasonic Output Power: | P < 10 mW |
Working Mode: | Continuous Wave Doppler |
Effective Radiating Area of Transducer: | 157mm2 (+/-)15% |
Power Consumption: | <0.8W |
Auto Shut-OFF: | After 1 minute no signal, power off automatically. |
Battery Type Recommended: | Two pieces of 1.5 V DC battery (SIZE AA LR6) |
